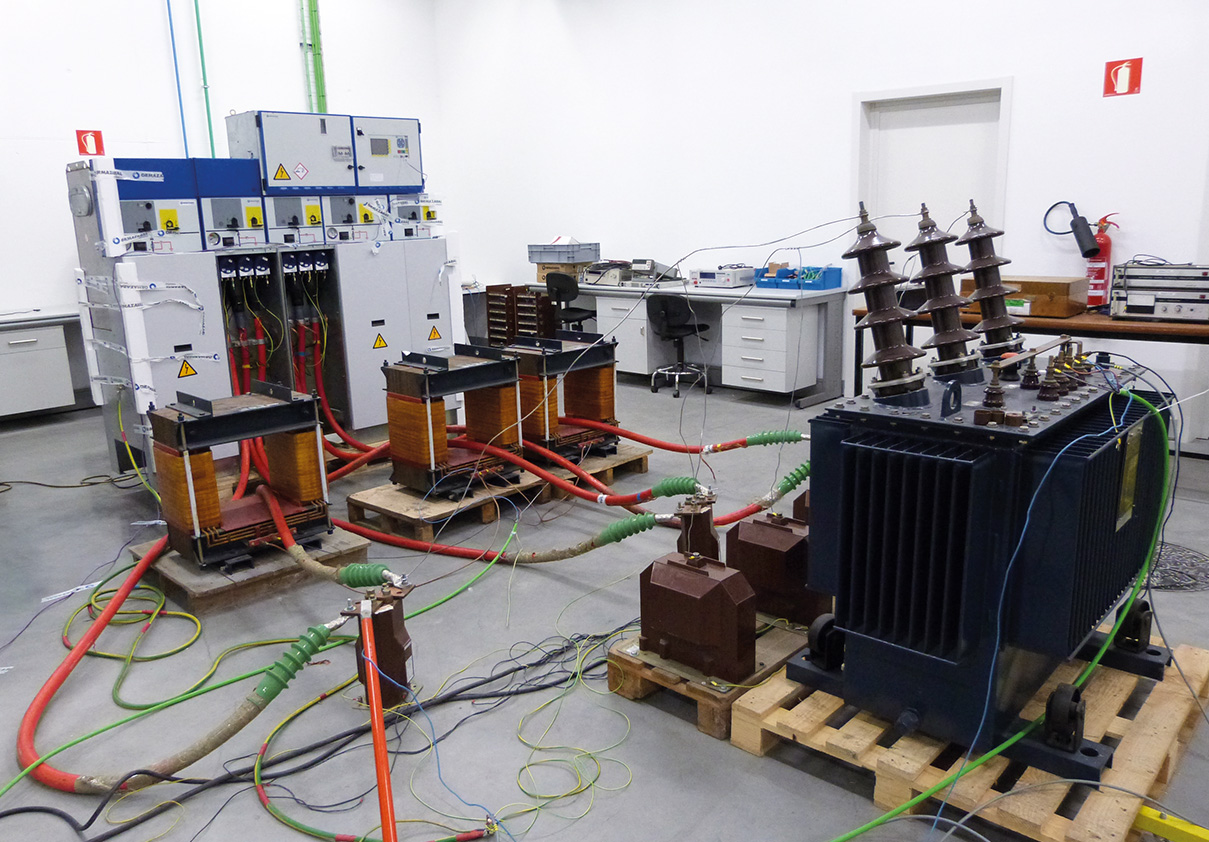

Temperature-Rise Laboratory
High-continuous current up to 12 kA / 3-phase (50 Hz/60 Hz) for temperature rise tests. Temperature-rise tests can be carried out at ambient or high temperature in large climatic chambers. 2 test bays for testing of all kind of industrial LV equipment and MV switchgear, cables, transformers, etc.
Dimensions of Main Test Bay: 12 m length x 5 m width x 15 m height.
Dimensions of Secondary Test Bay: 15 m length x 6 m width x 10 m height.
Environmental Laboratories
Large climatic chambers:
- Chamber 1 (4.2 m length x 3.0 m width x 2.6 m height): Temperature: -45 to 85 ºC; Humidity 10 to 98 %.
- Chamber 2 (5.5 m length x 4.0 m width x 4.0 m height): Temperature: -25 to 70 ºC.
Salt fog chamber (2.5 m length x 2.5 m width x 1.5 m height) for testing of polymeric HV insulators according to IEC 62217.
Dust, salt spray corrosion chambers.
1 chamber for UV test on silicon rubbers of composite insulators.
1 chamber for flammability tests on insulating materials.
